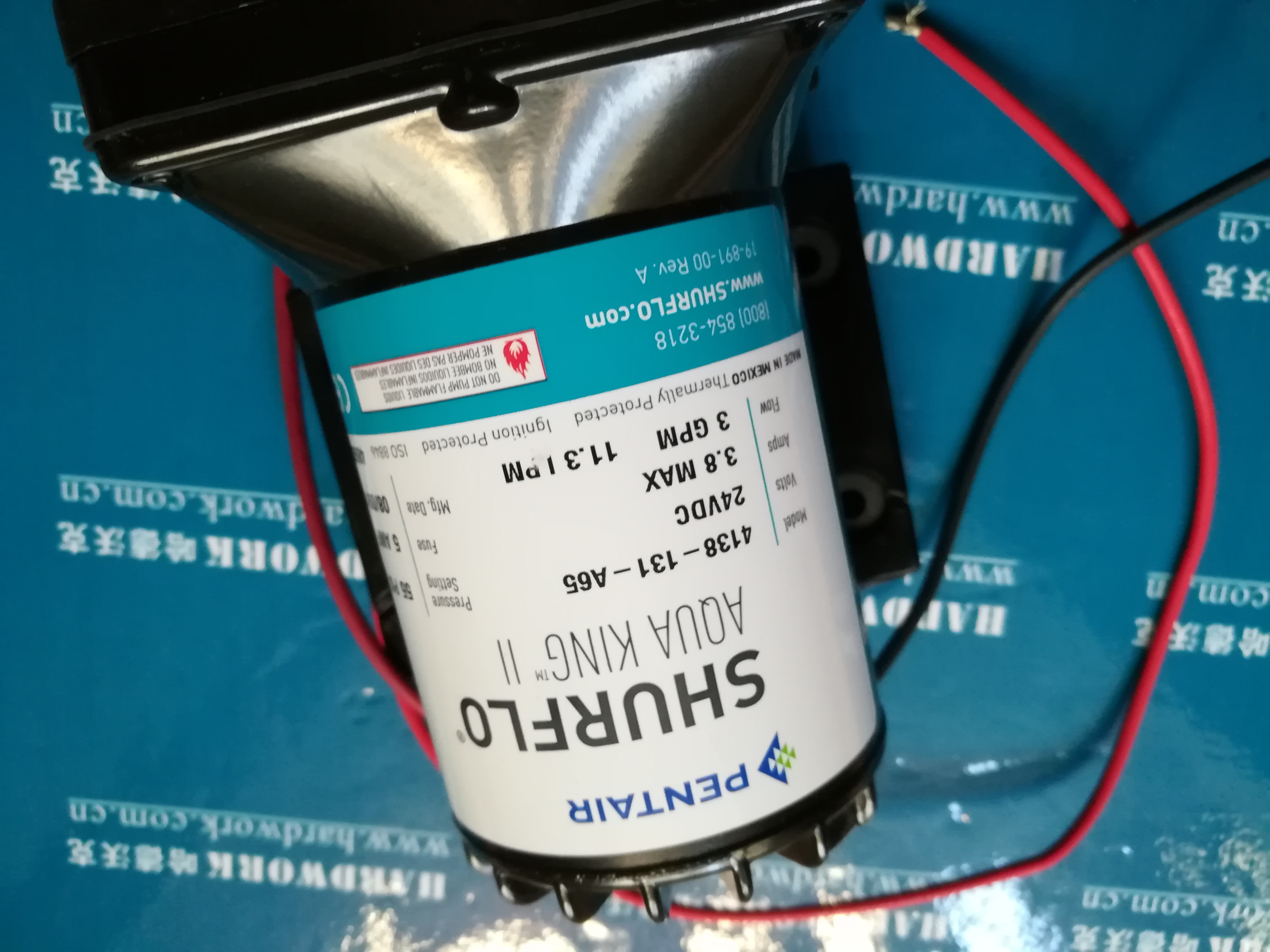

Part Number: 4138-131-A65
APPLICATION:
Multi-fixture Marine fresh water pump installation.This pump may be used for general fresh water transfer.
PUMP DESIGN:
Type: 4 Chamber Diaphragm pump
Ports: ?”-14 NPSM-Male
Liquid: 130°F [54°C] Max
Dry-Prime: 6 feet [1.82 M]
Run Dry: Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]
ELECTRICAL:
Motor: 24V DC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 14 ?” [37 cm] Red +, 15” [38 cm] Black
Fuse: 5 Amp Recommended
Control: Shut-Off 55 PSI [3.8 Bar] ± 2 PSI [0.13 Bar]
Re-start 40 PSI [2.8 Bar] ± 2 PSI [0.13 Bar]
Maximum By-Pass 62 PSI [4.2 Bar] ± 2 PSI [0.13 Bar]
MATERIALS OF CONSTRUCTION:
Housings: Polypro
Valves/Seals: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel
AGENCY APPROVALS:
Ignition Protection 8846, CE, IMCI Certified
